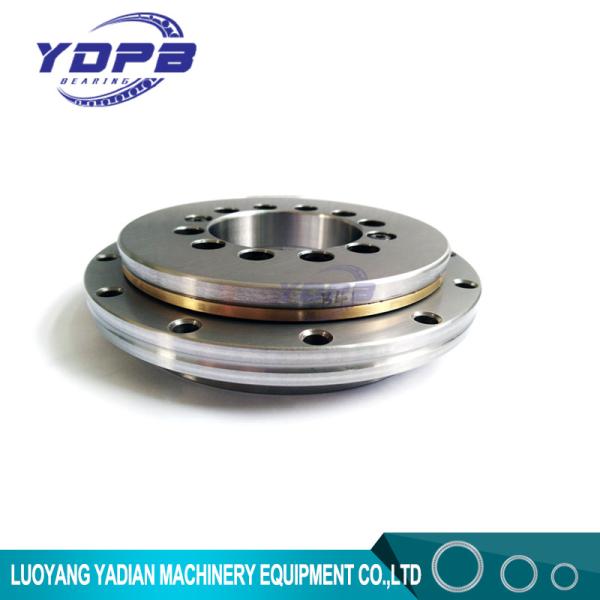

YDPB YRT200 Rotary Table Bearing Size 200X300X45mm CNC machine tool Torque Motor Bearing Milling Head Bearing
Model number- YRT200
Inner ring(mm)- 200
Outer ring(mm)- 300
Width(mm)- 45
Weight(Kg)-9.7
Fixing Hole(Outer ing)
Materials- GCR15/GCR15SiMn
Precision grade- P5/P4/P2
Lubrication type- Grease lubrication
Rotating part- Inner ring/Outer ring
Load direction- Multi-load
Structure- Integrated Inner/Outer Ring

Main Models

INA standard List :
YRT50 Bearings,YRT80 bearings,YRT100 bearings,YRT120 bearings,YRT150 bearings,YRT200 bearings,YRT260 bearings,YRT325 bearings,YRT395 bearings,YRT460 bearings,YRT580 bearings,YRT650 bearings,YRT850 bearings,YRT950 bearings,YRT1030 bearings,YRT1200 bearings.

FAG standard List:

YRC80,YRC100,YRC120,YRC150,YRC180,YRC200,YRC260,YRC325,YRC395,YRC460

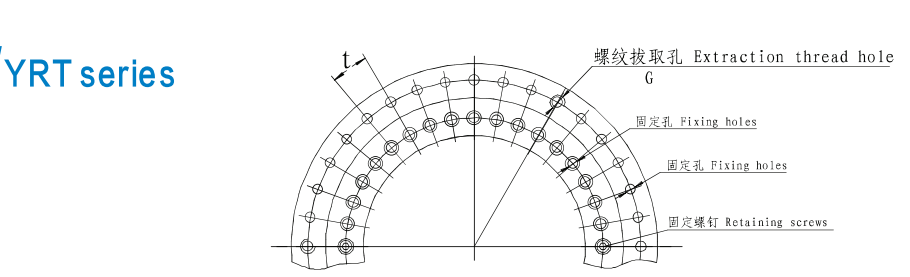

Main parameters

Application
Applications "Product Application
•Precision machine tools
•precision Turntable, NC rotary table
•Rotation part of Machine tools
•Inspection instrument,Medical equipment
•Indexing plate of other precision machines etc"

Market:
After years of development ,our products have been sent out to Germany ,Italy, Spain, Romania,Belgium,Israel,Russia,Korea,Mexico,India etc. Good quality and Service earn the constant supports from all our customers. any of your questions will be welcomed here any time.
Transportation available

Payment Terms:
Most of our customers use T/T( 40% in advance, Balance before shippment), Western Union ,Money Gram, for larger amount consider LC, all can be negotiable.

Luoyang Yadian Machinery Equipment Co.,Ltd is a professional precision bearing manufacturer,located in the well-kown bearing production base-luoyang city. Many workers with middle and senior bearing production management experiences and the Technicians can supply you perfect products technical service.Mainly produce rotary table bearings,crossed roller bearings,crossed taper roller bearings,Thrust cylindrical roller bearings etc. The precision level is P5,P4,P2. Bearing Size range is from Inner ring 50mm---Outer ring 130Locity Machinery Co.ltd is a professional precision bearing manufacturer,located in the well-kown bearing production base-luoyang city. Many workers with middle and senior bearing production management experiences and the Technicians can supply you perfect products technical service.Mainly produce rotary table bearings,crossed roller bearings,crossed taper roller bearings,Thrust cylindrical roller bearings etc. The precision level is P5,P4,P2. Bearing Size range is from Inner ring 50mm---Outer ring 1300mm.

Main products are rotary table bearings YRT,YRTS,YRTM,ZKLDF series and crossed cylindrical roller bearings RB,RE,RU,RA,RA-C,CRB,CRBC,CRBH,XSU,SX. Crossed taper roller bearings JXR,XR,Thrust cylindrical roller bearings 811,812 series etc. At the same time , Bearings precision level of Locity machinery can achieve to P4,P2 ,we accumulated many experiences After years of service to customers abroad and home, products have been exported to Germany,Italy,Korea,Japan,America,Belgium,Turkey etc. The most application area is precision rotation working table,machining center rotation table,Industrial robot joints and rotation,manipulator rotation parts,calculator,IC manufacturing equipments,CNC machine tool,Automation industry,direct drive motor,precision instrument,radar,Medical equipment,printing,textile industries etc. Replace Import ones.

Yadian Machinery Bearings are all controlled according to ISO9001 quality requirements before factory.Quality is stable and with best performance compare with price. We are always receive good assessment from customers domestic and abroad.Waiting our win-win relations
